Hot Melt Glue Features and Uses

Fast Packaging Glues

5-GLUE9010-12

5-GLUE9010-43

Perfect for carton sealing because it is fast setting and has medium viscosity due to the high paraffin wax content (a viscosity modifier). It has a high molten tack which reduces the chance of a carton popping open,and is resistant to shrink tunnel temperatures. Basic polymenr is EVA
(Ethynol Vinyl Alcohol). Light brown in colour. Open time 15 sec.
5-GLUE9015-12 Economy grade EVA* polymer base glue for applications where a fast bond is required. Ideal for paperboard, wood, fabrics and polystyrene. High
viscosity prevents too much penetration of glue into porous surfaces. Can also be considered as a general purposes glue. Clear in colour. Open time is 15 sec.

General Purpose or Assembly Line Glues

5-GLUE9020-12

A cost effective glue with excellent heat resistance, and high viscosity which makes it effective on porous substrates. Provides an excellent bond on soft and hardwoods. Also bonds a wide range of substrates including fabrics, ceramics, leather, polystyrene and some plastics (not polyolefins like PE and PP) EVA* poymer based. Brown in colour. Open time is 45 sec.
5-GLUE9030-12 An EVA based hot melt glue designed for use in the packaging industry and carton sealing. Fast setting with medium viscosity. It has a moderate tack which reduces the chance of cartons popping under stress. It is resistant to shrink tunnel temperatures.

5-GLUE9040-12

5-GLUE9040-43

Clear and flexible with 45 second open time and good heat resistance. A better quality version of the 5-GLUE9020 with a higher tackier and resin
content for lower viscosity, better flow and a closer, tighter joint line. Ideal for hobbyists, florists, assembly of vertical blinds and lampshdes etc. Clear in colour.
Melts @ 129c
5-GLUE3M3762LM
Hot melt adhesive 3762-LM is a low melt, 100% solids thermoplastic adhesive, excellent 'hot tack' - designed for manually closing of various styles of corrugated cartons. Features excellent 'hot tack'. Bonds to bead board, corrugated materials, and displays. Made from components listed as indirect food additives under FDA regulation for adhesives. It is dispensed with 3M 'Scotch weld' Hot melt applicator PH II LT.
5-GLUE3M3762 Economical and fast setting resin solid hot melt adhesive. It has been designed for general purpose applcations as well a manual and corrugated carton sealing. When heated to its specified melt point it forms an aggressive hot tack that rapidly achieves handling strength for packaging and other applications. It has a medium opening time which allows for positioning and fit adjustment and securely bonds difficult to seal substrates such as lightly waxed surfaces.It also bonds to corrugated or paper cartons, wood, particle board and cushioning foams.
Removable
5-GLUE3M3798LM
Scotch-Weld hot melt adhesive 3798LM TC is a 100% solids thermoplastic. Low temperature applied, removable adhesive. Scotch-Weld Hot melt adhesive 3798LM TC is fast and has strength and is easily removed without residual tack and can be used on a variety of substrates. It is dispensed with a 3M scotch-weld hot melt applicator LT.
Removable/Peelable
5-GLUE2169/BK
Hot melt adhesive 2169 has been formulated for use as a multi-purpose peelable adhesive. It is suitable for most paper and plastic materials, and to remain on the surface that it has been applied to. It is also ideal for making glue dots with the use of the 5-GLUEGTEC8200 glue dot dispenser.

High Performance Glue

5-GLUE9060-12

5-GLUE9060-43

The glue to turn to when all else fails in the product assembly area. A medium viscosity formulation combining an EVA* polymer with a unique rubber base for an extremely shock resistant, resilient, rubber-like bond. It works on the most difficult surfaces including most polyethelene and PP plastics, acrylics, ceramics, glass, metals, fibreglass and hardboard. It is lightbrown in colour. Open time is 40 sec.

Spray Glue

5-GLUE9062-43 Used for pallet stabilisation - holding together fibreboard cartons and PP racks and pallets which need to be moved and then pulled apart without removing the graphics. Of our three spray glues this has the least plasticiser and tackier content and therefore the best flow and highest output. It is light brown in colour. Open time is 60 sec.
Low melt
5-GLUE3M3762LM
Hot melt adhesive 3762-LM is a low melt, 100% solids thermoplastic adhesive, excellent 'hot tack’- designed for manually closing of various styles of corrugated cartons. Bonds to beadboard corrugated materials, and displays. Made from components listed as indirect food
additives under FDA regulation for adhesives. It is dispensed with 3M 'Scotch weld' Hot melt applicator PH II LT.
Removable
5-GLUE3M3798LM
Scotch-Weld hot melt adhesive 3798LM TC is a 100% solids thermoplastic. Low temperature applied, removable adhesive. Scotch-Weld Hot melt adhesive 3798LM TC is fast, has strength and easily removed without residual tack and can be used on a variety of substrates. It is dispensed with a 3M scotch-weld hot melt applicator LT.

Hot Melt Glue adhesive provides an instant and permanent bond between a vast range of materials and can be used for a wide range of applications such as; packing and carton sealing; potting and encapsulating; sealing, gap filling and reinforcing; repair or assembly just to name a few. There are two methods of applications – bead (or dot) and spray. Bead is a continuous bead of molten glue with the thickness, spread and pattern controlled by the operator. Spray is where the molten glue is sprayed from the TEC6300 glue gun which can be more advantageous as it is more economical with the amount of glue used and the molten glue is spread over a wider area and is more suitable for heat sensitive material that can be damaged by bead application
.*EVA is Ethyl Vinyl Alcohol

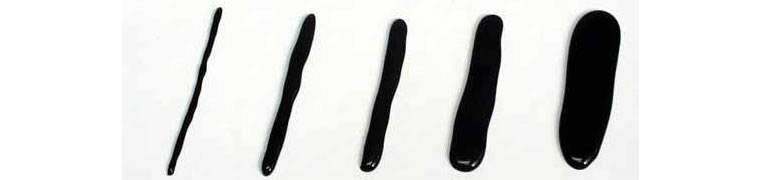

Lines of hot melt glue for a glue gun

  • First on Left: a 1.5mm wide bead enables approx 560 linear m/kg
  • Second from Left: a 3mm wide bead enables approx 153 linear m/kg
  • Middle: a 6mm wide bead enables approx 67 linear m/kg
  • Second from right: a 10mm wide bead enables approx 46 linear m/kg
  • Far right: a 12.5mm wide bead enables approx 31 linear m/kg
  • In comparison a small dot of glue approx 0.7cm wide gives approx 6600 dots/kg
  • Small dot approx 1.3cm wide give approx 3390 dots/kg
  • Medium dot approx 2cm wide gives approx 1520 dots/kg
  • A large dot approx 3cm wide gives approx 735 dots/kg

Hot Melt Glue and Packaging Glue

Code Size
Colour Open Time Features
5-GLUE9010-12 12mm x 300mm GLUE STICKS LIGHT BROWN 15 SEC FAST PACKING GLUE
5-GLUE9010-43 43mm x 40mm GLUE SLUGS LIGHT BROWN 15 SEC FAST PACKING GLUE
5-GLUE9015-12 12mm x 200mm GLUE STICKS CLEAR 15 SEC FAST PACKING GLUE
5-GLUE9020-12 12mm x 300mm GLUE STICKS BROWN 45 SEC GENERAL PURPOSE
5-GLUE9030-12 12mm x 300mm GLUE STICKS YELLOW 28 SEC GENERAL PURPOSE
5-GLUE9040-12 12mm x 300mm GLUE STICKS CLEAR 45 SEC GENERAL PURPOSE
5-GLUE9040-43 43mm x 40mm GLUE SLUGS CLEAR 45 SEC GENERAL PURPOSE
5-GLUE9060-12 12mm x 300mm GLUE STICKS LIGHT BROWN 40 SEC HIGH PERFORMANCE
5-GLUE9060-43 43mm x 40mm GLUE SLUGS LIGHT BROWN 40 SEC HIGH PERFORMANCE
5-GLUE9062-43 43mm x 40mm GLUE SLUGS LIGHT BROWN 60 SEC SPRAY GLUE

5-GLUE2169-BK
0.5kg BLOCK CLEAR   REMOVABLE / PEELABLE
5-GLUE3M3762 3M JET MELT ADHESIVE 3762 (5kg/ box) TAN 35 SEC GENERAL PURPOSE
5-GLUE3M3762LM
5-GLUE3M3762LM 3M JET MELT ADHESIVE 3762 - LOW MELT (5kg/box)
    MELTS @ 129C

5-GLUE3M3798LM
12mm x 200mm REMOVABLE GLUE STICKS 3M GUMMY GLUE   REMOVABLE
5-GLUE-P-4 4 LITRE - PADDING GLUE CLEAR
5-GLUE-P-21 21 LITRE - PADDING GLUE CLEAR
5-GLUE3317-BR Qr3317-BR TECHNOMELT HOTMELT - 12kg Solid white for bookbinding, thread stitched and thread sealed books, side glueing & end sheet glueing. Excellent adhesion for a variety of papers & materials and suitable for difficult-to-bond papers.
5-GLUE3788 3788 ADHESIN / GRIPIT - 15Lt Waterborne high viscosity resin, designed for bonding papers & films. Bookbinding & Packaging
5-GLUE4126 4126 TECHNOMELT GLUE - 15kg Designed for carton & packet making & sealing, very fast bond forming (setting)

Glue Guns

Code Description
Glue Used
5-GLUEGTEC250 SIMPLEST LIGHTWIEGHT GLUE GUN
12mm STICKS
5-GLUEGTEC810 DESIGNED FOR CONTINOUS USE - HEAVY DUTY 12mm STICKS
5-GLUEGTEC820

ADJUSTABLE TEMPERATURE CONTROL

12mm STICKS
5-GLUEGTEC3200 HIGH OUTPUT GLUE GUN 43mm SLUGS
5-GLUEGTEC6100 HIGH OUTPUT GLUE GUN 43mm SLUGS
5-GLUEGTEC6300 SPRAY APPLICATOR 43mm SLUGS
5-GLUEGMS200 LARGE GLUE CHAMBER 43mm slugs, granulate and pillows
5-GLUEG3MLTS 3M DESIGNED FOR LOW MELT 3M AND 12mm STICKS
5-GLUEGVH5 BULK ADHESIVE DISPENSER BULK
5-GLUEGTEC8200 GLUE DOT DISPENSER 0.5KG BLOCK
5-GLUEGTR50.4
5-GLUEGTR55
5-GLUEGTR60
PNEUMATIC HOT MELT APPLICATOR ANY BULK GLUES INCLUDING CHOPPED UP STICKS
